Tuesday, October 28, 2008

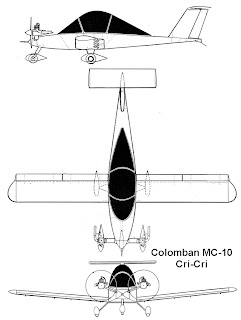

Cri cri 3 view drawings

























Cri-Cri - MC-10 Cri-Cri

Min speed:39 kt45 mph72 kmh
Cruise speed:108 kt124 mph200 kmh
Vne:159 kt183 mph295 kmh

Climb ratio: 600 ft/min | 3 m/s

Take off distance over 50ft (15m) obstacle: 330 ft | 101 m
Landing distance over 50ft (15m) obstacle: 495 ft | 151 m

Max. take off weight: 170 kg | 375 lbs
Empty weight: 80 kg | 176 lbs

Engine: 2 JPX PUL 212 engines, 15 hp each

Other aircraft information:
It was in 1971, when aircraft designer Michel Colomban started work on this small aircraft Cri Cri with two engines. His target was to build small, economis plane with two engines, which would be able to flying also some aerobatic maneuvers. Price of this plane shouldn't exceed 1000 USD, including two engines - these prises are from 1970, of course:-). Constructional works took around 1500 working hours, and than was Cri-Cri plane, which name is after nickname of Michel's daughter, prepared for it's first flight.

Text from: http://flight.cz/cricri/english/index.php

Performance Table
MC-10 Cri-Cri MC-12 Cricket MC-12 Cricket
Wingspan 5 m 5 m 4,9 m 4,9 m
Captain 3,9 m 3,9 m
Wing area 3,1 m2 3,1 m2
Re-air 63 kg 63 kg 75 kg 75 kg
Take-off weight 170 kg 170 kg
Wing load 55 kg/m2 55 kg/m2
Engine Model 2x 9PS 2x 9PS 2x 15PS 2x 15PS
Overload factor +9G, -4,5G +9 G, -4,5 G +9G, -4,5G +9 G, -4,5 G
Maximum speed 200 km/h 200 km / h 250 km/h 250 km / h
Cruising speed 170 km/h 170 km / h 185 km/h 185 km / h
Rate of climb 3 m/s 3 m / s 6 m/s 6 m / s
Roll away 150 m 150 m 120 m 120 m
Ceiling 5500米 5500 m
Voyage 750 km 750 km 500 km 500 km
